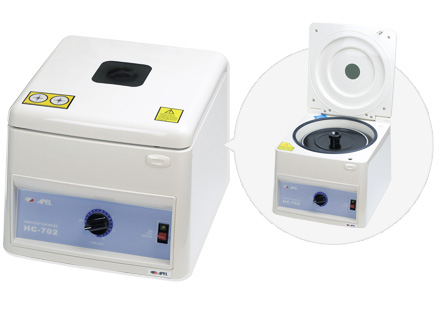

Hematocrit-centrifuge
HC-702
Catalog download
- Designed for capillary tubes
- Particularly designed for centrifugation of the samples in the capillary tubes.
- Simple timer
- It can be used simply only by timer setup.
- Large cost cut
- A bold design change realized the large cost cut.
- Safety rock
- The brake and the lid opening and closing button are attached, and safety is raised.
- Renewed design
- A design is renewed, and while the outer case is made into plastic mold and is light-weighed, the surveillance window is also prepared in the upper part.
| Max. speed | 12,000 rpm (Fixed) |
|---|---|
| Max. centrifugal force | 15,000 x g |
| Max. Capacity | 24 places |
| Safety device | Triple balance system Manual lid lock, lift cover and power cut off Fuse 110 V / 10 A, 220 V / 5A |
| Timer | 0 ～ 15 min.(regressive type) |
| Brake System | Manual brake system |
| Power Requirement | 110 VAC or 220 VAC 50 / 60 Hz |
| Power Consumption | 180 W |
| Dimensions | 290 (W) X 320 (D) X 245 (H) mm |
| Weight | Around 8 kg (main body) |
| Hematocrit gauge |
|---|
*Specifications and appearance are subject to change without notice.
